Details

---

TPER JOINT SEAL



Description

---

CORKJOINT J-Seal TPER Joint Seal, made from Thermoplastic Elastomeric Rubber, is a pre-formed joint seal for use in expansion and construction joints in concrete to prevent the egress of water through the joint, and to seal against the infiltration of debris and foreign matter from entering the joint. is a pre-formed joint seal for use in expansion and construction joints in concrete to prevent the egress of water through the joint, and to seal against the infiltration of debris and foreign matter from entering the joint.

CORKJOINT J-Seal TPER Joint Seal is extruded form a specially compounded cross-linked TPER material that provides resistance to UV, certain chemicals, oils, fuels, salt and sewage water. CORKJOINT J-Seal TPER Joint Seal can be fully submerged under water. CORKJOINT J-Seal TPER Joint Seal provides high performance features for long-term durability and intergrity of the joint, for continuous use in low and high temperatures, and has excellent UV and weather resistance.

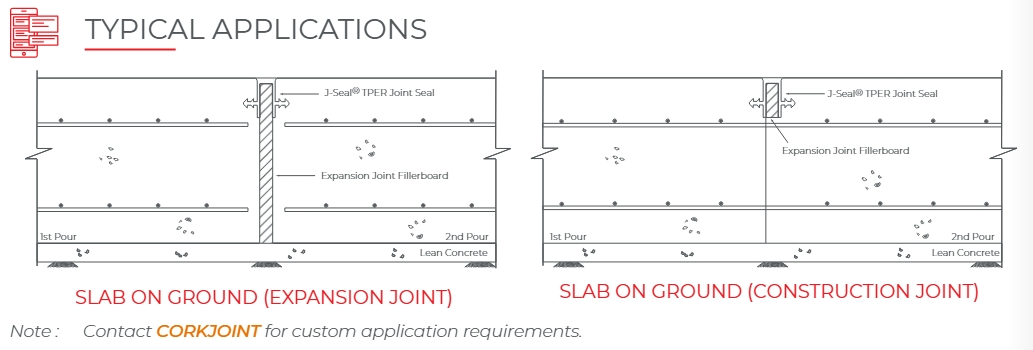

Uses

---

• For expansion & construction joints in concrete

• Slab on ground and roof slab joints

• Connection of slab to wall (podium deck area) locations

• Concrete pathways or walkways

• Carparks, driveways, tunnels and concrete roads

• Reservoirs, dams, water treatment plants & sewage treatment plant

Advantages

---

• Simple & easy to install

• Can handle a wide range of movement

• Creates an aesthetically pleasing joint finish

• Competitively priced against traditional joint sealing compounds

• Provides a permanent & flexible seal at the surface of the concrete and inside the concrete joint

• Acts similar to a waterstop and can be fully submerged in water

• Does not work free from the joint, even when the joint is subject to expansion and contraction movements

• Strong, robost and has excellent abrasion resistance

• Available in standard concrete grey colour. Other colours available to match the colour of the substrate surface

• Compatible with all different types of expansion joint fillerboards

• Installs at a wide range of temperatures and climatic conditions with resistance to UV and many chemicals

• Factory made intersections are available for joint areas that intersect or transect each other

• Ability to be used in areas where curves or radius joint positioning is required

• Can be used in conjunction with other waterstop systems as added benefit/protection to the structure and to the system

• Joining by heat welding



Color

---

• Grey



Packaging

---

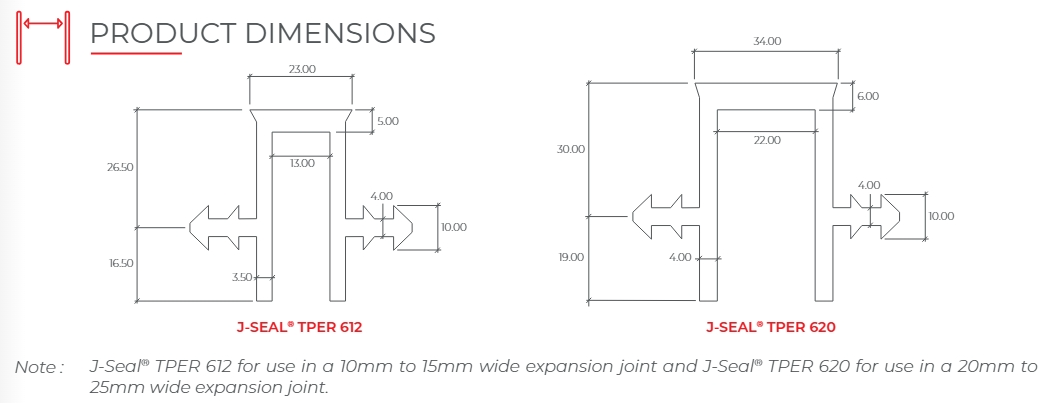

J-Seal TPER 612

• 10mm (Width) x 10m (Length)

• 15mm (Width) x 10m (Length)


• 20mm (Width) x 10m (Length)

• 25mm (Width) x 10m (Length)
