Details

---

XB PVC WATERSTOP



Description

---

CORKJOINT® XB PVC Waterstop is a specially designed profile for use in expansion or isolation joints in concrete where traditional PVC waterstop profiles cannot be placed due to the interference of reinforcement bars. XB PVC Waterstop should only be installed into an expansion/isolation joint with a width of 10mm-25mm.



Uses

---

• Expansion/isolation joints in concrete where reinforcement does not allow the use of traditional, wider type, PVC waterstop profiles

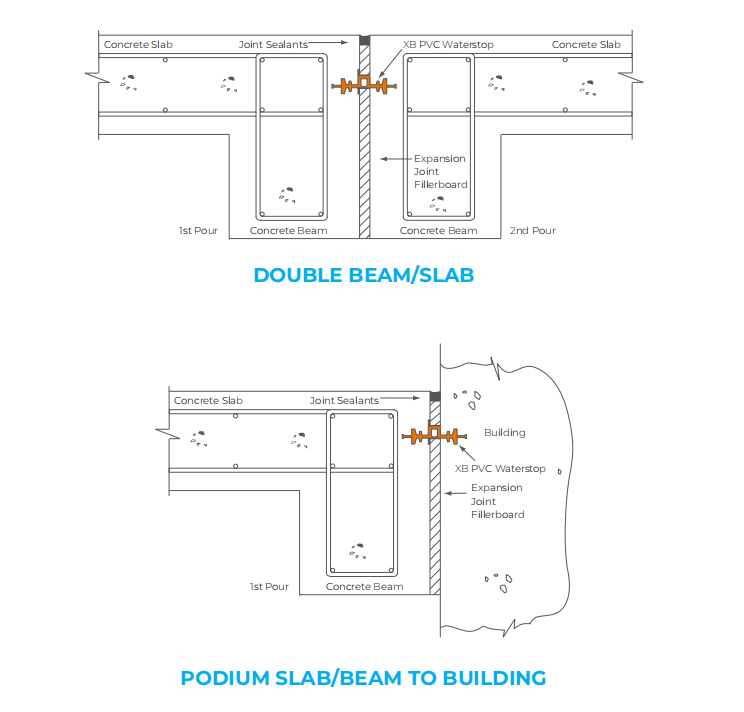

• Double beam expansion joints

• Podium slab to building expansion/isolation joints

• Slab to column expansion joints

• Slabs & suspended slabs with double beams & columns



Advantages

---

• Ability to waterstop the joint where traditional PVC waterstop profiles cannot be placed due to their inappropriate design and width.

• Able to accommodate large movements in expansion/isolation joints due to its innovative design.

• Able to accommodate longitudinal, lateral and differential movements in expansion/ isolation joints.

• A high-performance material produced from virgin PVC compound (refer to material specification) giving long-term integrity and durability over time. No scrap or recycled PVC’s are used.

• Water stops the joint and allows it to expand and contract freely from movements caused by thermal fluctuations and serviceability load from within the structure.

• Easy to install



Application

---



Colour

---

• Orange



Packaging

---

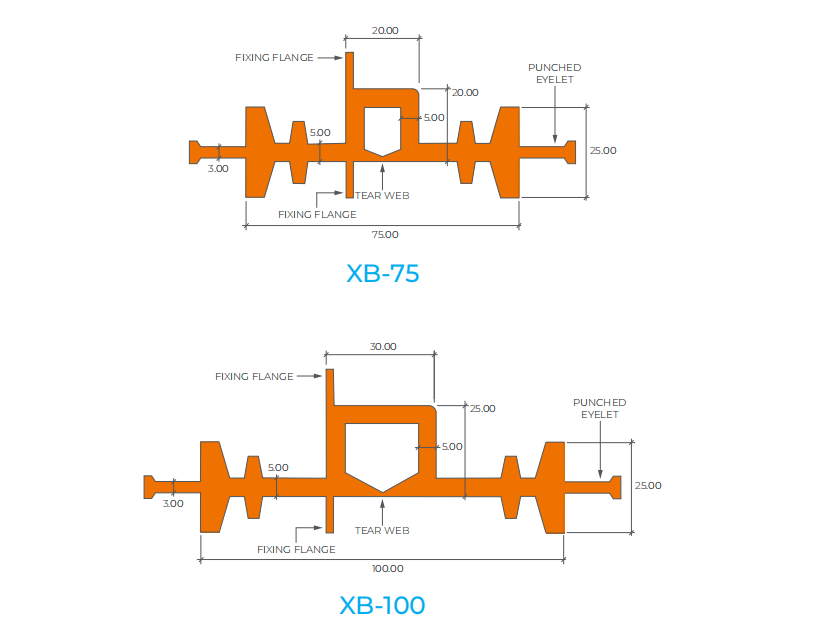

• 75mm (Width) x 10m (Length)

• 100mm (Width) x 10m (Length)
